Computer Tomography

X-ray imaging, as well as many other imaging methods are based on measuring the attenuation of a medium. In a simple conventional X-ray image, all attenuation between the X-ray source and camera is integrated into a 2D image. Because some structure attenuates more than other, a doctor can examine structures (e.g. bone in the body, caries decay in teeth). However, as described the method essentially projects and ``blurs'' the true 3D structure onto a 2D plane.

In tomography, or CT-scanning (from Computer Tomography), a computational process is used to uncover a 3D image from multiple 2D images. The following is a short description for those who want a bit of technical background. For those eager to get to the implementation, all that is needed for that is described in the next section. You can also learn more starting from e.g. the following wikipedia links:
Computed tomography
Tomographic reconstruction

Theory

A discrete 3D image is represented by small volume elements voxels. Here, without loss of generality we will develop the theory for one axial slice of voxels, which then akin to in a normal 2D image are named pixels. The whole 3D image is then simply composed of several such slices stacked up.

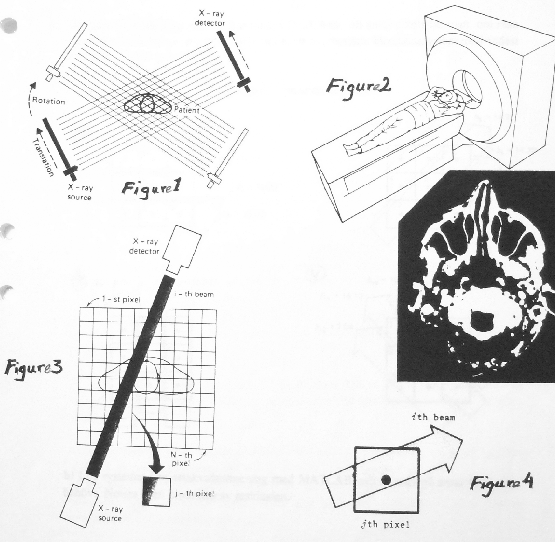

Figure 1: Tomography machine and working principle
\includegraphics[width=1.0\textwidth]{TomoOver}

The principle enabling 3D reconstruction is to detect the x-ray absorption along numerous sets of rays going through a body, as shown in Fig 1. In practice this kind of apparatus is built by rotating a diametrically opposed X-ray source and detector. Fig. 2 shows the typical design of a hospital CT machine. The xray source and detectors are built into the circular structure, and the patient is inserted into the central opening.

Each ray measures the cumulative attenuation along a line. In the discrete representation, this line intersects several pixels, as shown in Fig. 3 and 4. Hence from the signal of one detector we only know the combined attenuation of all pixels along that ray. The X-ray absorption density in pixel $j$ is defined as

\begin{displaymath}x_j = \ln({n_j \over m_j})\end{displaymath}

Where $n_j$ is the number of incoming photons and $m_j$ is the number of outgoing photons leaving pixel $x_j$. Now if a ray intersects several pixels, say pixel $1, 2, \ldots, K$ then the total absorption along the ray is

\begin{displaymath}\ln({n_1 \over m_K}) = \sum_{k=1}^K x_k\end{displaymath}

To set a reference level $n_1$ for each X-ray detector, the machine is run without a person in it. Now the total x-ray absorption along a ray $r_i$ can be written

\begin{displaymath}r_i = \ln({n_0 \over m_K})\end{displaymath}

and each pixel along the ray $r_i$ thus contributes additively as follows

\begin{displaymath}r_i = \sum_{k=1}^K x_k\end{displaymath}

Now we want to recover the $x_k$, and to do so we have to take a sufficient number of rays intersecting different subsets of pixels, then form an equation system with the measured absorptions $r_i$ as righthand sides, $x_k$ as unknowns, and a matrix of 1's and 0's describing which pixels are intersected by which ray.

Numerical solution

We first consider some simple $3 \times 3$ and $4 \times 4$ cases, then a more general $n \times n$

a. $3 \times 3$ case

Set up the equation system for pixel 1 to 9 the $3 \times 3$ imaging situation illustrated in the figure below using b-data, where b_i = r_i above. Select a suitable subset of observations to form a b-vector and A matrix. Pay attention to that the A matrix has to be full rank for the solution to make sense. Solve the system using Matlab's built-in LU routine. Set up and solve the overdetermined system arising from data 1,2,3 and 4 using Matlab's ``$\backslash$" operator. Is this solution better? Why?

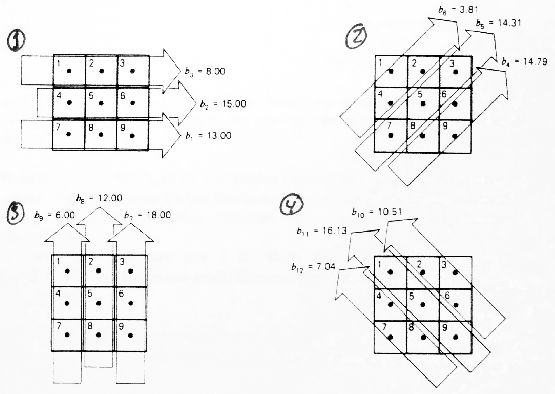

Figure 2: Tomography pixel line scan patterns
b_1 = 13.00 b_2 = 15.00 b_3 = 8.00 b_4 = 14.79 b_5 = 14.31 b_6 = 3.81 b_7 = 18.00 b_8 = 12.00 b_9 = 6.00 b_10 = 10.51 b_11 = 16.13 b_12 = 7.04
\includegraphics[width=1.0\textwidth]{TomographyScanPatt}

b. $4 \times 4$ case

Extend the above generation to a $4 \times 4$ case. Now it becomes less obvious what are a good set of rays (imaging directions). Explore some different options and study the rank and numerical conditioning of the matrix. Use a $4 \times 4$ image $X$ of your own design. Reshape the image into a column vector $x$ and form the observations using $b = Ax$. From this data $b$ make sure you can reconstruct the image.

c. $n \times n$ case (5xx students only)

The $n \times n$ case is a direct generalization of the above small cases. The main challenges are to construct the matrix correctly (this is avoided in part c1). We choose a relatively low resolution to make the computation tractable even with the regular lu or similar routines working on full matrices. However, matlab can also handle sparse matrices. (optional) If you are interested you can try this. start with ``help sparfun''. Another alternative is to use an iterative method. There are some examples in the Heath textbook.

c1 (Everyone)

We have provided the design matrix $A$ and absorption coefficients $B$ for two particular data setups in lab1c_part1.mat. (You can also access this data directly on the ugrad lab computers by ``cd /cshome/vis/cmput340/lab1cData''.) Note that each column of $B$ corresponds to a full scan. Solve the system of equations for each column and display the results using imshow. (Note: the solution gives you a column vector, which you will need to reshape into a square matrix, using reshape(x,[n,n]). You will also need to transpose the result, as the data we are dealing with is accessed row-major whereas Matlab assumes column major). One of the datasets, char_c1.mat, contains a sequence of letters. What word does it spell out? The other, mri_c1.mat, contains several slices of a brain image as exemplified below.

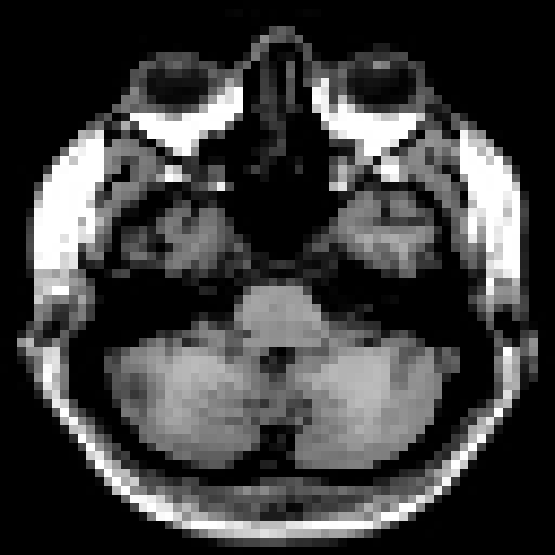

Figure: Example slice of a human brain
\includegraphics[width=1.0\textwidth]{mri_ex}

c2 (5xx students only)

Reconstruct the voxel from the scan data available in lab1c_part2.mat. The input data comes in the form of two cell arrays thetas and scans. Element i of the thetas array is an $m_{theta} \times 1$ column vector containing the rotation angles (in degrees) of the scan head for each scan. Element i of the scans array contains a $m_{theta}n \times t$ matrix, where each column is the $b$-vector for a full scan, and there are $t$ of them (perhaps a sequence of images from the same scanner setup over time). Note that you can extract $n$, the size of the voxel grid and scanner head, from the size of $m_{theta}n$.

Figure: Example setup for 2x2 grid. Rotation is always interpreted around center of image. For this problem, $\theta =[0,45]^T$, and each complete scan would be of the form $\vec{b}=[b_1,b_2,b_3,b_4]^T$.
\includegraphics[width=0.5\textwidth]{spec}

For consistency, assume that a ray intersects a voxel if the center of the voxel is less than 0.55 units from the line. The rotation should be interpreted as in Figure [*] and the $b$-vector is read from the rays in a consistent manner, where at 0 rotation they align with the center of the voxels along the horizontal scanlines.

As illustrated, the imaging is orthographic, with the sensor capturing a parallel ray set from each angle. At angles [0, 90] degree it is is trivial to enumerate ray-pixel intersections. Let the intersection of the [0, 90] degree rays define the pixel centres. Any real camera would have a point spread function (psf) around each ideal ray centre. Here the capture window is defined to be 0.55 radius from the line w.r.t. above coordinate system. (ie if rays are 1mm apart we will have 1x1mm pixels and a ray intersects a pixel is it is within .55 mm of the ray centre.)
