Lab assignment L3
Applications of Eigen values and Vectors
For due dates see the calendar web page. For hand in details the lab
main page. The command to submit your assignment (submit early to ensure it works and you can resubmit as much as you like before the deadline):
Objective
To practice the use and implementation of overdetermined equation systems/model fitting (Heath Ch3, Ch7) and eigenvalue problems (Heath Ch4) though a practical application. In particular our application is to approximate
the effect of lighting variation and scene motion (rotations) in images using function approximation. This lab is a simplified example of techniques relevant to view dependent texturing and image-based modeling and rendering.
When combined with geometric modeling it can be used to capture and render scenes and light variation from video.
Procedure
We will interpolate between images with different lighting conditions/object
positions using a function of the form I(x) = B*Y(x), where B is a linear
basis for our image space and Y(x) can be acquired by an interpolation function.
The steps of the lab involves: (1) computing
the subspace basis B by finding the eigenvalues and vectors (Ch 4) to a sample set of images, and (2) performing data fitting over the computed set of data (Heath Ch 3,7).
Exercise 1 demonstrates the effect of applying PCA over synthetic data. Exercise 2 and 3 (to be demo in lab session) are examples that will help the understanding
of the image modulation. Exercise 4 and 5 are related to the real
application.
Hint for the lab is available here .
Exercise 1: Eigenvalues and Eigenvectors
Note: Please download the interactive script Here (lab3_prt1.mlx). Answer questions and fill in code as requested in the comment section.
In this exercise you will use PCA as described in the lab sessions,
seminars
and below. The purpose is to recover the main axes of the distribution
and plot the axes with length (2*sqrt of eigenvalues).
To generate a random, eclipse-like 2D Guassian distribution and visualize it, the below sample code is provided:
% Gaussian distr, Box-Mueller method
n = 400
U = rand(2,n);
v = 2*pi*U(2,:);
G = ones(2,1)*sqrt(-2.*log(U(1,:))).*[cos(v);sin(v)];
plot(G(1,:),G(2,:),'.')
axis equal
% Transform
A = [1 .5
.5 0.5];
t = [8; 1];
Y = A*G+t*ones(1,n);
plot(Y(1,:),Y(2,:),'.')
axis equal
hold on

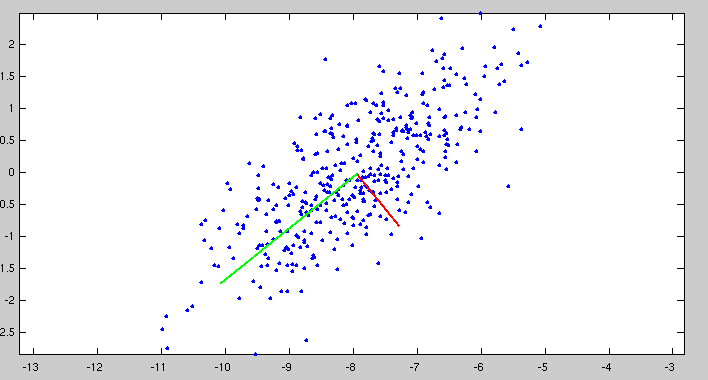

You can plot the axes as in the example above, or plot an ellipse corresponding to the axes.

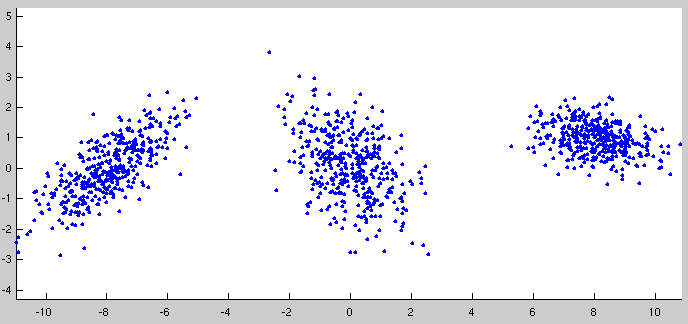

Additionaly, three pre-generated data sets Y1, Y2 and Y3 are provided in EllipsePoints.mat.
Show how to find the major and minor axes of those.
The eigenvalues and vectors describe the essense of how a matrix
transforms a vector. To see the effect we can generate a set of
vectors of unit length representing all directions:
t = 0:0.1:2*pi;
x = [cos(t); sin(t)];
plot(x(1,:),x(2,:))
axis equal
We now transform them:
A = [1 .2
.2 1];
y = A*x
plot(y(1,:),y(2,:))
axis equal
Using the eigenvectors and values we can compactly capture the
effect of the matrix, and draw the transform:
[X,D] = eig(A)
hold on
axis equal
plot(D(1,1)*[0 X(1,1)],D(1,1)*[0 X(2,1)],'g')
plot(D(2,2)*[0 X(1,2)],D(2,2)*[0 X(2,2)],'r')
hold off
Try a few of these transforms on your own (no need to turn in),
to get an idea of the effect of different matrices.
Remember that (symmetric) positive definite matrices will give you real ON eigenvectors.
Unsymmetric matrices may give complex results.
To think about: In the above we only rotated and scaled. More
generally we can also add translation y = Ax+t. You might try on
your own to make a routine which can plot any ellipse given its
parametric form (as in Heath Computer problem 3.5).
A more common problem in practice is that we have data that we
want to somehow characterize. The data may have significant variation
along some axis and less along others. A common model is that of
a Gaussian distribution. If there is little variation along a
particular axis, that dimension could be omitted altogether.
This is the idea will be further exploited with the images below.
(Optional, TBA in Lab) A common use for PCA is to segment data into in and out sets.
For instance, in images a region that looks like a solid color to the
eye usually has some variation. To quantify this variation a sample of
the image can be sampled. Once a gaussian model is fit, the rest of
the image can be analysed as to what fits the model or not.
"Bluescreening" in TV production, and fill tools in graphics/image
editors can be implemented like this.
Implementation sketch:
- Select a (rectangular) region of a solid color.
- Perform PCA on the 3D RGB color space using the colors of
the pixels as data.
- Use recovered PCA transform (A, t) to examine all pixels in
the image. Mark pixels that are matching the Gaussian model.
This step can be performed as a coordinate transform where the regular
RGB color space is transformed using the A and t, s.t. the resulting
coordinates are aligned and scaled with the PCA axes. Now selecting
the pixels simply amounts to checking the norm of all pixels.
In pixels have norm less than k (e.g. norm less than 1).
Exercise 2: A moving wave image
Note: Please download the interactive script Here
(lab3_prt1.mlx). Answer questions and fill in code as requested in the comment sections.
The effect of image motion can be obtained by modulating a sin/cos basis.
Considering the following formula:
sin(ax+bt) = sin(ax)cos(bt)+cos(ax)sin(bt)
where a and b are constants, x is the spatial variable and t is time. We can interpret the above formula as the modulation
of a sin and cos spatial basis with time varying coefficients - cos(bt), sin(bt).
The example can be extended in 2D.
Download the sincos_bs.mat data. B contains the sin/cos image basis (as columns) and Y is an example set of temporal modulation coefficients (each set of coefficients is a column, hence Y(:,1) are the coefficients for time 1, Y(:,2) for time 2 etc.).
Show the modulated images on the screen in quick succession resulting
from the different coefficients in Y. You can use imshow, then drawnow to force immediate rendering to the screen.
You can use the function
renderim.m
Ii = renderim(Y(:,i),B,imsize);
imshow(Ii,[]);
drawnow; pause(0.1);
Construct a similar basis that has twice the frequency of the given one and show the effect of motion through modulation.
What is the effect of changing b ?
Exercise 3: Small image motion
Note: Please download the interactive script Here (lab3_prt1.mlx). Answer questions and fill in code as requested in the comment section.
Consider an image I(u,v). We study the effect of a small shift (horizontal and vertical) using Taylor expansion:
I(u+du,v+dv) = I(u,v) + [Ix(u,v) Iy(u,v)][du dv]' + hot
GI = [Ix Iy] represents the image gradient. Again we can interpret the above formula using image modulation. In this case the basis B is formed by [I, Ix, Iy] and the coefficients are of the form [1 du dv]. The effect of the modulation is a small image shift. In the below we compute the derivative by taking differences in spatial coordinates. It is also possible to use a time series of images, akin this example of a bus.
Download the immotion_basis.mat data. The data is in the same format as before. Visualize the motions produced by the given coefficients the same way as for the example above. (You can slow down the rendering speed to see the effect better by using a more finely spaced set of t-values, e.g. -3:0.2:3, appropriatetely inserted into the Y matrix of coefficients.
Repeat the procedure for another image of your choice. To calculate the image gradient (derivatives) use the Matlab function 'gradient'. Study the effect of changing the magnitudes of the coefficients in Y. What happens if you pick larger Y values (e.g. 5:10)? Why? What type of image does this procedure work best for? Explain appealing to the Taylor expansion what happens when it doesn't work.
Exercise 4: Combining the linear image subspace B with interpolation
Note: An interactive script of this exercise can be found Here (lab3_ex4.mlx). Optionally, you can choose to start with your own script.
Two precomputed data with basis B are provided, modulation
coefficients Y and correxponding image index vector X.
light_pca.mat (for original images in directory: images/lighting/1)
obj_pca.mat (for images/objects/13)
It is suggested to start with the light images. To compute your own basis, follow up the procedure in Exec 3.
Note: To put your data from Exec 3 below in the same format as the downloadable
data, you need to add the meanim to B and use the transpose of the Y matrix from matlab "eigs" command, as noted under point 4, Exc 3 (It = [meanIm;B]*[1;Y(t,:)']).
To understand this exercise you need to reflect on Exc 4 and 5 and
notice how B holds a basis that spans image variation here. It is just of
larger dimension than the two previous exercises. The columns of Y hold
coefficients of the basis. You can re-generate the input images
through:
load light_pca
for c = 1:size(Y,2)
Ic = renderim(Y(:,c),B,imsize);
imshow(Ic)
drawnow
end
The task here is to approximate/interpolate the data
in Y in order to generate accurate/high quality intermediate images,
in addition to the ones used to compute the basis B.
Since each image is generated by a column vector y = Y(:,c), to syntesize new
images you need to interpolate each element in y. That means you will be fitting each interpolation function to the data along one row of the coefficient matrix Y.
-
First of all, try to understand what each of the matrices inside the data file stands for. Additionally, use the render code provided to
visualize the reconsturcted images from basis B and Y.
-
Now, densely generate new Y_new values for each of the datasets with a piecewise interpolation. The process is shown as follows:
-
Construct a vector X_new more densely sampled than X. That is, densely sample X with 4 times as many values.
-
Given X, Y, and your densely sampled X_new, perform piecewise interpolation and generate the new coefficients Y_new. Y_new will contain interpolated values of Y.
You can use MATLAB's built-in piecewise interpolation method (interp1), and returns the interpolated values Y_new corresponding each element in the vector X_new.
-
Render the image sequence with your newly generated coefficients X_new and Y_new.
By generating new coefficients X_new and Y_new using piecewise interpolation, you can multiply them
through the basis, add the mean image (if using your own generated basis), and reshape
them to the size of the original images.
-
Repeat the previous exercises with polynomial interpolation of various degrees.
You can use your your polynomial interpolation function from lab 2: Y_new=polynomial_interp(X,Y,X_new,n) which fits a
polynomial of degree n to Y, and returns the values of that polynomial for each element in the vector X_new.
Additionally, you can also use MATLAB's built-in functions "polyfit" and "polyval".
-
Verify that your method correctly interpolates/approximates intermediate images by leaving out some components in Y.
Compare how well Y_new represents Y for piecewise interpolation if you omit some components in Y.
First try getting the first few components of Y interpolated right, (ie focus on Y(1:6,:), and ignore Y(7:m,:), (or set Y(7:m,:)=0).
- Verify that your method correctly interpolates/approximates intermediate images by leaving out some of the original data.
From the original Y, pick one (or more) t-values, and omit the sets of coefficients Y(:,t) corresponding to image t.
Compute the interpolated coefficients Y_new and be sure to now include the t's corresponding to the ommited values. Does the interpolation
correctly recover the Y? (ie how close is Y_new(:,t) to the dropped Y(:,t)?) Render the image at t and compare with the original. How close do they look?
Exercise 5: Finding a linear subspace for a set of images
Note: An interactive script of this exercise can be found Here (lab3_ex5.mlx). Optionally, you can choose to start with your own script.
Several sets of images are provided at images.
Note: Students can directly download the linear subspace basis for two data sets to test their results for Exercise 3.
light_pca.mat (for original images in directory: images/lighting/1)
obj_pca.mat (for images/objects/13)
They proceed in the following way:
- Load in a sample image set (light or position) with m images, and flatten them so
the pixels in each image is a column vector, for instance using ImV=Im(:);.
The image as a vector will be a quite
long vector, e.g. q = 10,000 for a 100 x 100 image. Then put all the
m column vectors into an q x m matrix M.
The images are located in images, and a suitable image loading function is provided below.
- Perform a Normalized Eigen-vector/Principle Components Analysis (PCA) on your
image data set. The procedure is shown as follows:
-
Find the mean of all input image vectors and make Mz a matrix
where each column is an image minus the mean image (meanIm).
This can be achieved by the
built in Matlab function mean, but pay attention to which dimension it takes the mean over. We will synthesize/interpolate the intensity variation of a pixel over time, so the mean should be over the different image instances of the same pixel, not the mean over the pixel intensities in one image.
Hint: Use an outer product of a mean column vector
and a row vector of ones to form a matrix of the same size as Mz with the
mean image repeated in each column. Optionally, visualize the acquired mean image and denote its association to the image dataset. Now you can directly subtract this mean matrix from M.
-
Calculate the covariance matrix C = (Mz' * Mz) / m;
-
Get the first K eigenvectors Y of C using eigs in matlab. (K=6 will be needed below, but for better quality try K=10 for the light, and K=20 for the objects. )
-
Calculate the basis vectors as B = Mz * Y;
-
The matrix of sample values for our coefficient functions is Y' (Mz=BY')
(Pay attention to the " ' "-transposes, and note that Y in Exc 4 is transposed (because that is the way it comes out of eigs) compared to the Y in Exc 2,3,5)
-
Transform the resulting basis vectors (columns of B) into images of the
same size as the input images, and display the first 5 (use absolute value).
(Make sure you get the eigen vectors and images corresponding to the
largest eigenvalues.)
Plot a graph of the corresponding coefficients (rows of Y'); these are the
functions we want to interpolate using polynomials (one poly for each
row of Y').
Results should look something like these (from images of a rotating cat):
- Then test that you can regenerate each input image k from your
approximation as It = meanIm + B*Y(k,:)'. Reshape and show the images using your script from Exercise 4.
(Alternatively you can add meanIm as follows: It = [meanIm;B]*[1;Y(k,:)'],
where "1" is a row vector of ones.
This is how the B matrix in the downloadable examples is done B = [meanIm;B])
-
Instead of using normalized PCA, perform SVD over the matrix M. You can use MATLAB's built-in SVD method to acquire the decompositions U, S, V.
Again, keep only the first K eigenvectors V, and the first K eigenvalues S, by matrix slicing.
As a result, the matrix of sample values for our coefficient functions Y = V(:,1:K)';', where we keep the first K eigenvectors, and
the basis vectors can be computed as B = U * S(:,1:K); .
Try to compare the quality of the constructed basis between both PCA and SVD and denote which method is better for approximation.
More Hints
Both PCA and SVD take quite a bit of memory and processing.
If you have trouble, resize images to a smaller size, (see the image loading functions below) or use fewer images.
Try to make sure your test scripts
run in reasonable time, so that they can be run in the demos.
Two functions are provided here: loadobjectimages.m and
loadlightimages.m for loading images. Additionally, two helper functions, readppm.m and
ppmunpack.m are provided to read the lightimages.
The parameters are image set number (there are 20 object image sets, and 3 lighting image sets), a vector containing
a list of which images to load (object images have [0:71] and light images [1:65] total), and an optional scale factor (0.5 will scale all images in half).
For lighting image sets, use this index vector :
[29 37 24 50 11 61 2 64 5 56 17 45 33]
The above index vector represents a light scribing a circle in front of the
face. (The numeric values in the light image file names are the angular
pan and elevation angles.
Optionally, if you are experimentally minded you can make
the light change on different circles or paths by choosing different images,
but the results may be harder to interpret.) Optionally you could also consider 2D interpolation to be able to re-light the faces at an arbitary both pan and elevation angle of the light.
